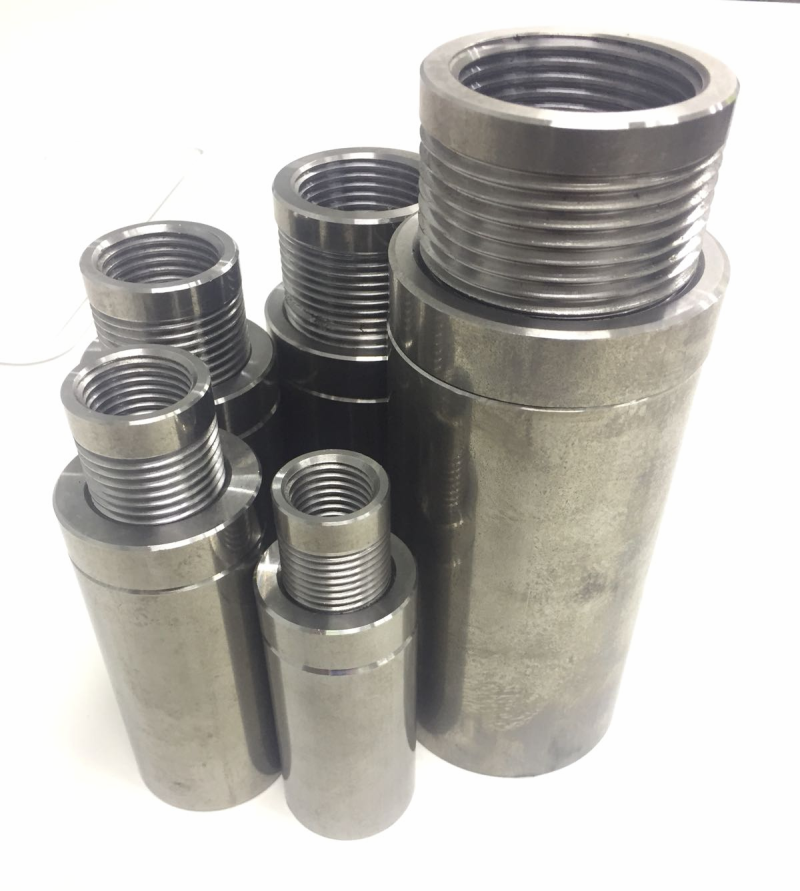

RHINO Position Coupler B 43mm (#14)

Part Number: RC43B

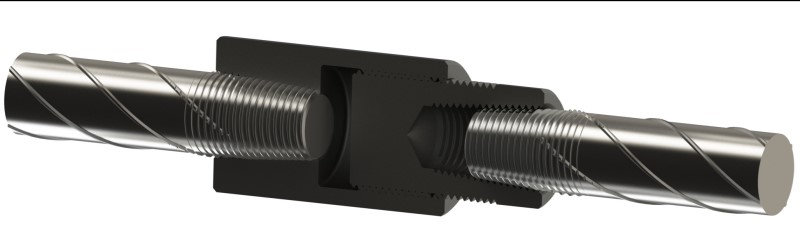

  • Designed to join bar to bar connection
  • Either one or both bars cannot be rotated
  • Extends to bar that cannot be rotated
  • Does not contain Lock Nut
  • Slim Design & Maintains Concrete Cover
  • Installs Quickly

Would you like to learn more about this product? Add this product to your quote request, our technical agents will reach out to discuss, etc. etc.

  •   Length (L1)   156mm
  •   Diameter (D1)   79mm
  •   Bar Depth (BD1)   64mm
  •   Max Extension   24mm
  •   Length (L1)   6.14 inchs
  •   Diameter (D1)   3.12 inchs
  •   Bar Depth (BD1)   2.50 inchs
  •   Max Extension   .95 inchs
  •   Finish    Plain
  •   Mateial    1045 Cold Rolled Steel
  •   Pack Qty
  •   Weight

Design Standard and Fitment

Standards

AASHTO - ACI 318 Type 1 - ACI 318 Type 2 - ACI 349 - ACI 359 - AS3600 - CAN/CSA - N287.2/.3/.4 - IBC Type 1 (125% specified yield) - IBC Type 2 (specified ultimate) - US Army Corp of Engineers

Fitment

Bar dimensions and weights listed may vary by region. Coupler sizes not shown may be available by special order. Contact your RHINO representative for more information.
