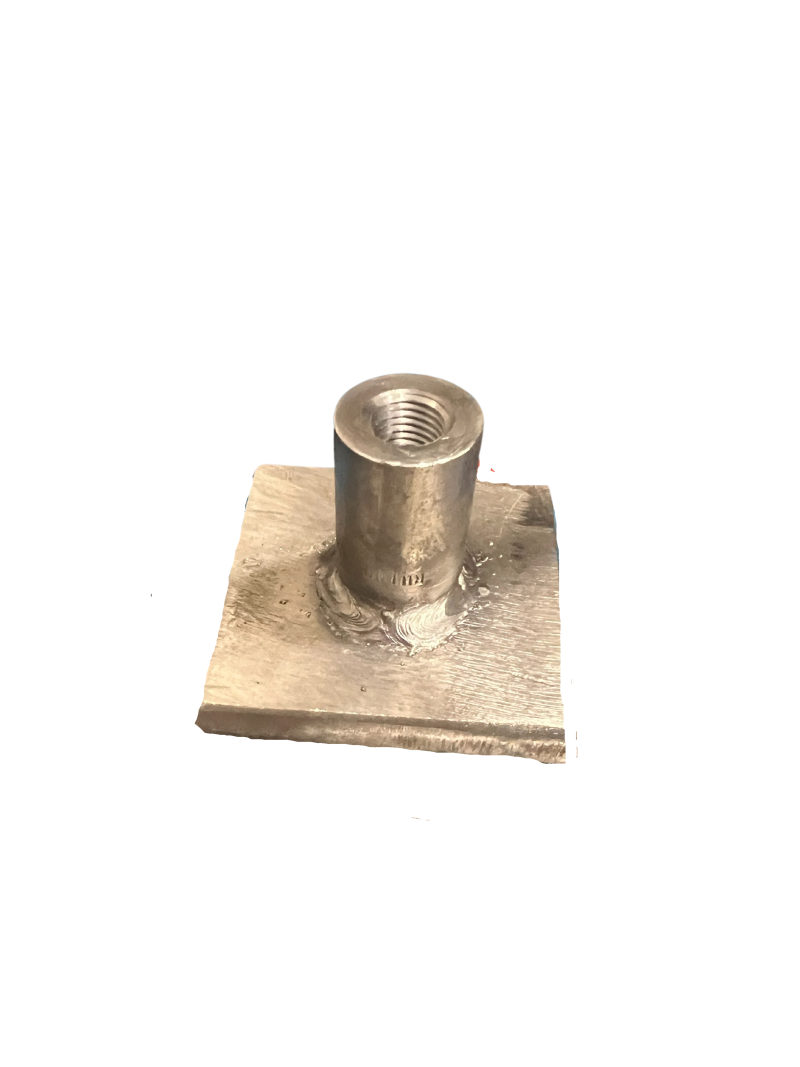

Weldable Coupler 19mm (#6)

Part Number: WC19

Connects rebar to structural steel
Coupler made of Weldable grade of material
Slim Design & Maintains Concrete Cover
Installs Quickly

Would you like to learn more about this product? Add this product to your quote request, our technical agents will reach out to discuss, etc. etc.

Quantity

Metric Specifications

Imperial Specifications

Material Specifications

Length (L1) 56mm
Diameter (D1) 30mm
Diameter (D2) 23mm
Bar Depth (BD1) 45mm

Length (L1) 2.17 in
Diameter (D1) 1.18 in
Diameter (D2) .91 in
Bar Depth (BD1) 1.38 in

Finish Plain
Material A.I.S.I. 1030 or similar
Pack Qty
Weight (kg) .27 kg

Design Standard and Fitment

Standards

AASHTO - ACI 318 Type 1 - ACI 318 Type 2 - ACI 349 - ACI 359 - AS3600 - CAN/CSA - N287.2/.3/.4 - IBC Type 1 (125% specified yield) - IBC Type 2 (specified ultimate) - US Army Corp of Engineers

Fitment

Bar dimensions and weights listed may vary by region. Coupler sizes not shown may be available by special order. Contact your Rhino representative for more information

Warning

RHINO products shall be installed and used only as indicated in RHINO's product instruction sheets and training materials. Instruction sheets are available at www.rhinoconnections.com and from your RHINO customer service representative. Improper installation, misuse, misapplication or other failure to completely follow RHINO's instructions and warnings may cause product malfunction, property damage, serious bodily injury and death and/or void your warranty.
