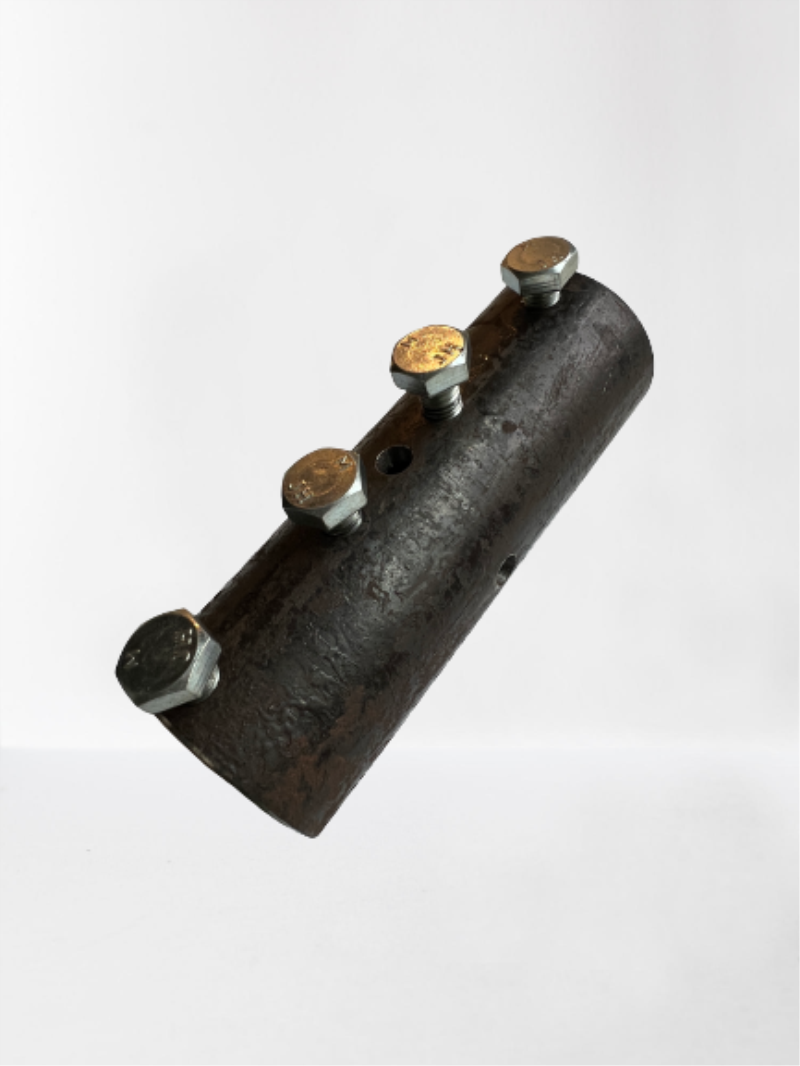

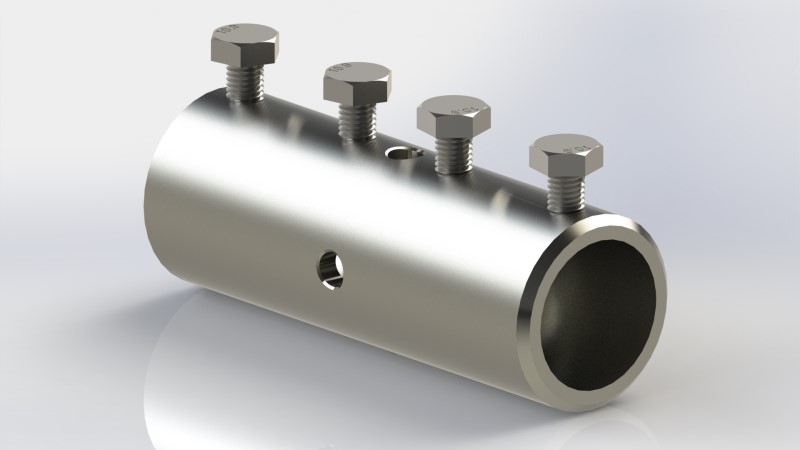

RHINO CC Coupler 43mm (#14)

Part Number: CC43

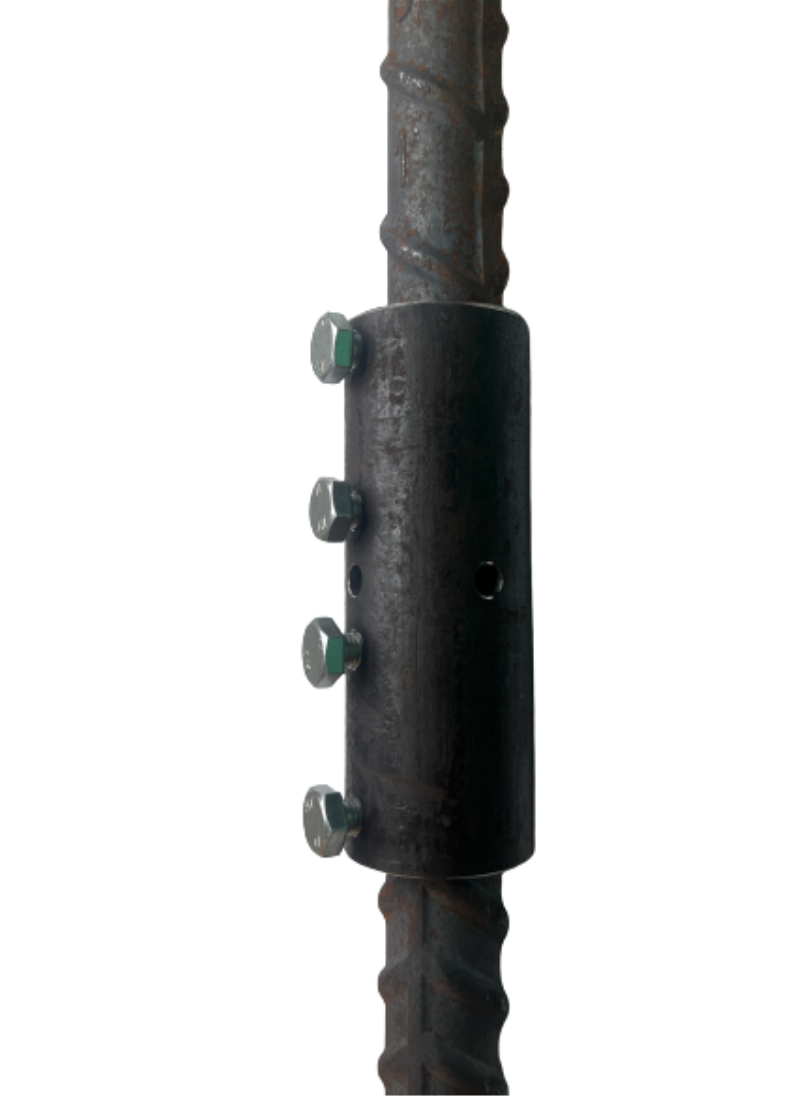

Bars can be individually secured
Fast, one-person installation
Requires only a lightweight ratchet wrench to install
Self supporting; no tack welding is needed
Easily removed and reused
Meets ACI 318, Type 2 (Compression Only)

Would you like to learn more about this product? Add this product to your quote request, our technical agents will reach out to discuss, etc. etc.

Quantity

Metric Specifications

Imperial Specifications

Material Specifications

Length (L1) 203 mm
Diameter (D1) 56 mm
Weight (kg) 1.36

Length (L1) 8.00 in
Diameter (D1) 2.19 in
Weight (lbs) 3.00

Material Steel
Finish Black

Warning

RHINO products shall be installed and used only as indicated in RHINO's product instruction sheets and training materials. Instruction sheets are available at www.rhinoconnections.com and from your RHINO customer service representative. Improper installation, misuse, misapplication or other failure to completely follow RHINO's instructions and warnings may cause product malfunction, property damage, serious bodily injury and death and/or void your warranty.
