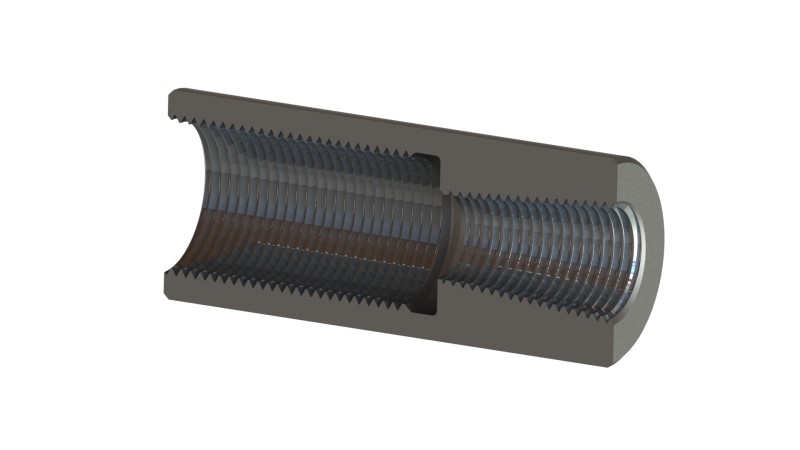

RHINO Position Coupler 32mm (#10)
-

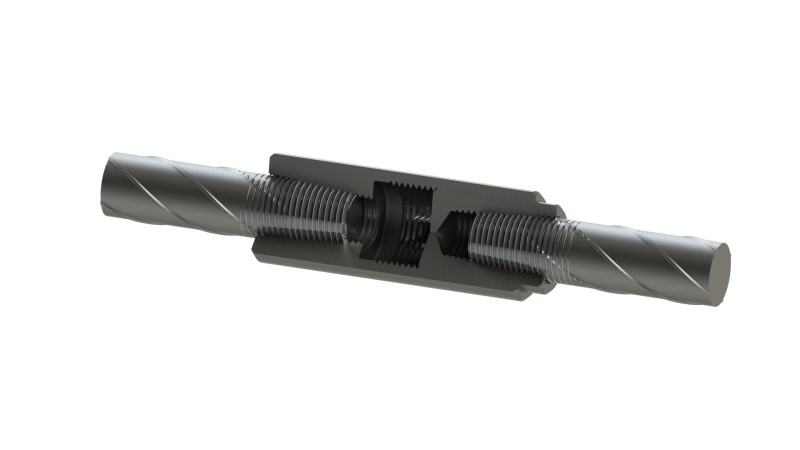

Designed to join bar to bar connection
-
Either one or both bars cannot be rotated
-
Extends to bar that cannot be rotated
-
Includes lock ring
-
Slim Design & Maintains Concrete Cover
-
Installs Quickly
- Length (L1) 125 mm
- Diameter (D1) 65 mm
- Bar Depth (BD1) 48 mm
- Max Extention 24 mm
- Length (L1) 4.92 in
- Diameter (D1) 2.56 in
- Bar Depth (BD1) 1.87 in
- Max Extention .95 in
- Finish Plain
- Material 1045 Cold Roll Steel
- Pack Qty
- Weight (kg) 2.10 kg
Design Standard and Fitment
Standards
AASHTO - ACI 318 Type 1 - ACI 318 Type 2 - ACI 349 - ACI 359 - AS3600 - CAN/CSA - N287.2/.3/.4 - ICC ES AC133 - US Army Corp of Engineers - CALTRANS Service and Ultimate
Fitment
Bar dimensions and weights listed may vary by region. Coupler sizes not shown may be available by special order. Contact your Rhino representative for more information
