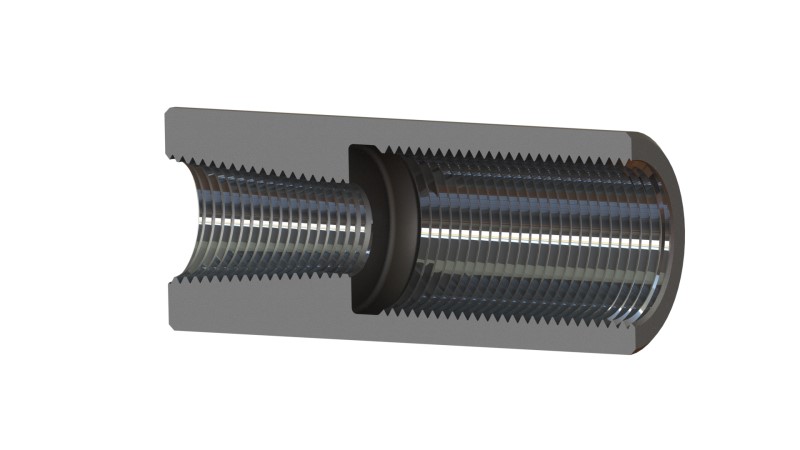

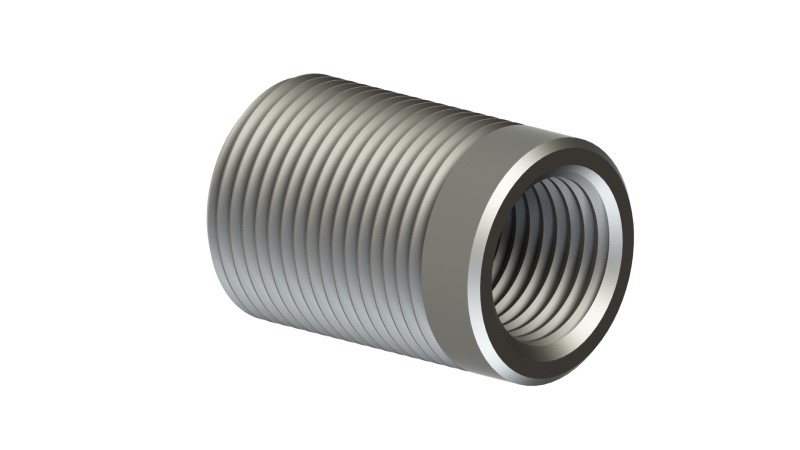

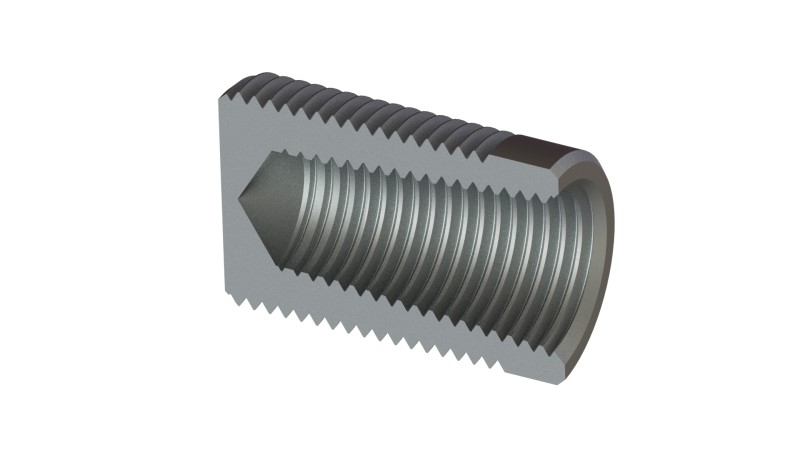

RHINO Position Coupler 40mm
- Designed to join bar to bar connection
- Either one or both bars cannot be rotated
- Extends to bar that cannot be rotated
- Includes lock ring
- Slim Design & Maintains Concrete Cover
- Installs Quickly
- Length (L1) 139 mm
- Diameter (D1) 80 mm
- Bar Depth (BD1) 60 mm
- Max Extension 24 mm
- Length (L1) 5.47 in
- Diameter (D1) 3.14 in
- Bar Depth (BD1) 2.36 in
- Max Extension .95 in
- Finish Plain
- Material 1045 Cold Drawn
- Pack Qty
- Weight 2.7 kg
Design Standard and Fitment
Standards
AASHTO - ACI 318 Type 1 - ACI 318 Type 2 - ACI 349 - ACI 359 - AS3600 - CAN/CSA - N287.2/.3/.4 - ICC ES AC133 - US Army Corp of Engineers - CALTRANS Service and Ultimate
Fitment
Bar dimensions and weights listed may vary by region. Coupler sizes not shown may be available by special order. Contact your RHINO representative for more information
Warning
RHINO products shall be installed and used only as indicated in RHINO's product instruction sheets and training materials. Instruction sheets are available at www.rhinoconnections.com and from your RHINO customer service representative. Improper installation, misuse, misapplication or other failure to completely follow RHINO's instructions and warnings may cause product malfunction, property damage, serious bodily injury and death and/or void your warranty.
