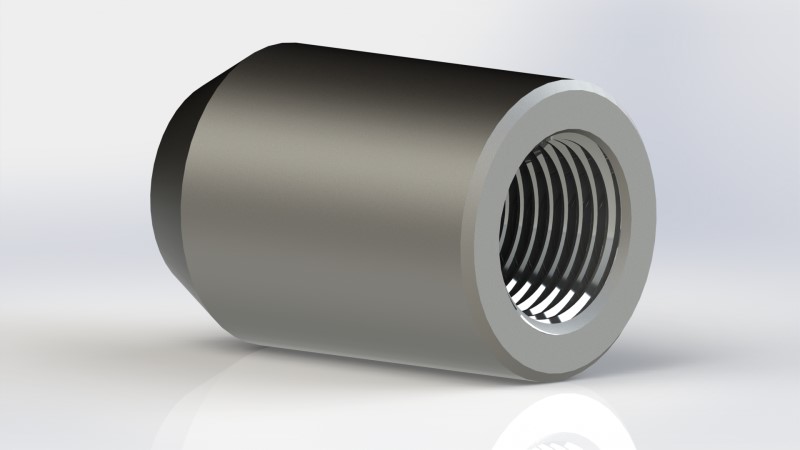

Weldable Coupler 22mm (#7)

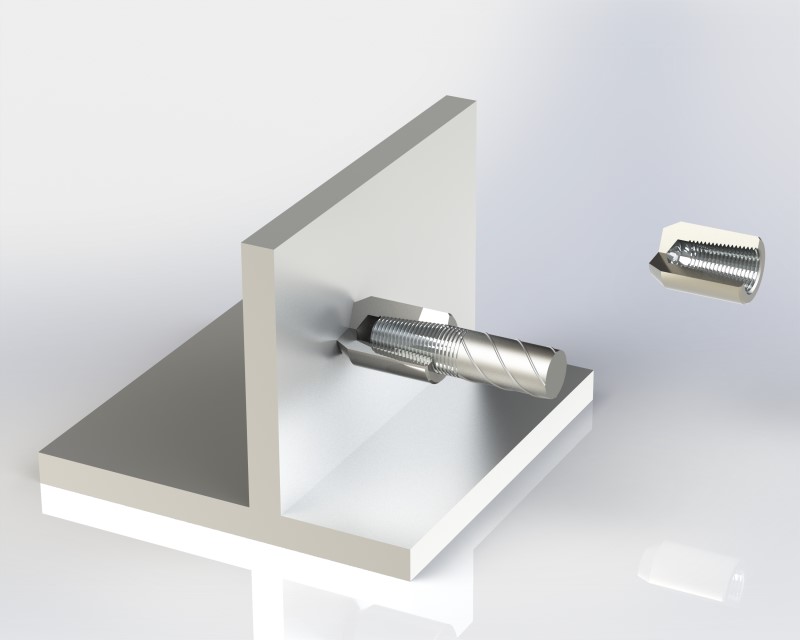

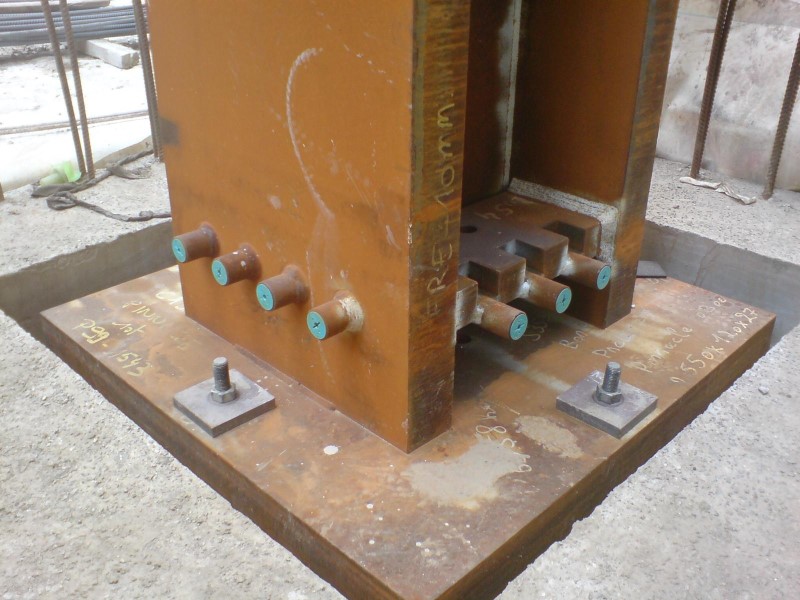

- Connects rebar to structural steel
- Coupler made of Weldable grade of material
- Slim Design & Maintains Concrete Cover
- Installs Quickly
- Length (L1) 60mm
- Diameter (D1) 32mm
- Diameter (D2) 20mm
- Bar Depth (BD1) 44mm
- Length (L1) 2.36 in
- Diameter (D1) 1.25 in
- Diameter (D2) .80 in
- Bar Depth (BD1) 1.75 in
- Finish Plain
- Material A.I.S.I. 1030 or similar
- Pack Qty
- Weight (kg) .31 kg
Design Standard and Fitment
Standards
AASHTO - ACI 318 Type 1 - ACI 318 Type 2 - ACI 349 - ACI 359 - AS3600 - CAN/CSA - N287.2/.3/.4 - IBC Type 1 (125% specified yield) - IBC Type 2 (specified ultimate) - US Army Corp of Engineers
Fitment
Bar dimensions and weights listed may vary by region. Coupler sizes not shown may be available by special order. Contact your Rhino representative for more information.
Warning
RHINO products shall be installed and used only as indicated in RHINO's product instruction sheets and training materials. Instruction sheets are available at www.rhinoconnections.com and from your RHINO customer service representative. Improper installation, misuse, misapplication or other failure to completely follow RHINO's instructions and warnings may cause product malfunction, property damage, serious bodily injury and death and/or void your warranty.
